Roof Types & Shapes

In This Article:

Roof Framing

Drive through nearly any neighborhood and you can see that roofs have many different shapes. Houses have gable, hipped, mansard, gambrel, flat, and shed roofs. Many homes combine roof types on one roof. It’s quite common, for example, to see a hipped roof with gable dormers.

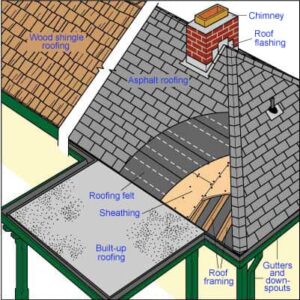

types of roofing© Don Vandervort, HomeTips

Roofing may be made of several different materials, among them wood shingles, asphalt shingles, or built-up tar and gravel.

Roof shape is one of the key factors in setting the architectural style of a house. Roof shape also dictates how difficult and costly a roof will be to build and how it will serve the house. For example, flat, shed, and, in some cases, gable roofs tend to be relatively affordable to build.

©HomeTips

Roofs are built in a variety of shapes.

Gambrel and mansard roofs offer more head height for attic rooms. Shed roofs are usually the easiest type to connect to an existing roof when adding on.

Roof framing can be simple or complex, depending on the roof. Overhangs, hips, and dormers add greatly to the complexity of the framing.

Roof Framing

Nearly all roofs are framed using one of two methods: standard “stick” framing or newer “truss” framing.

©HomeTips

Stick-framed roof is built one member at a time.

Stick-framed roofs utilize individual rafters that span from the top of exterior walls to the ridge.

©HomeTips

Roof trusses are manufactured ready-to-install.





Truss-framed roofs are built from triangular-shaped, pre-made truss units.

Gable and hip roofs may be built primarily of trusses; other roof shapes, particularly those with dormers or on houses with cathedral ceilings, attic rooms, or attic storage areas, are stick built. Stick framing creates a triangle between the rafters and ceiling joists. A collar beam adds strength at the middle.

©Don Vandervort, HomeTips

Roof Framing Diagram

Like wall studs and floor joists, rafters and trusses are spaced every 16 or 24 inches from center to center. Most roofs utilize 16-inch spacings for strength and rigidity. The rafters are usually positioned directly above the wall studs.

A truss is one contiguous double rafter/ceiling joist unit. Truss construction is just as strong but is lighter weight and uses smaller sizes of lumber than stick framing.

Because trusses are carefully engineered units that shouldn’t be cut, they are not a good choice for roofs that may be modified at a later date. And because they have several intermediate support members, they don’t allow for use of the attic space.
